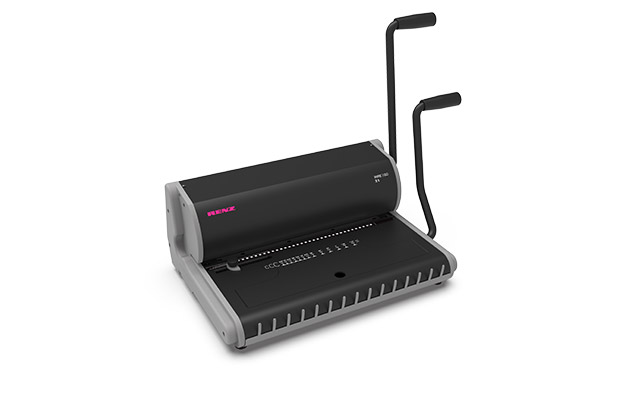

RENZ WIRE|GO 2:1

is a manual 2:1 pitch (23 rings/A4) wire comb binding machine. This compact entry-level model is perfect for quick and easy punching and binding of A4 and A5 documents. The ergonomic two-lever system and the integrated comb holder make it particularly user-friendly. With a maximum working width of 300 mm, you can punch up to 20 sheets per punching process with ease. Binding strengths of up to 280 sheets are possible.

  • Recognized and proven ergonomic two-lever system
  • High quality, low force punching for up to 20 sheets per punching operation
  • Binds up to 280 sheets
  • Integrated wire comb holding device for easy loading of punched sheets
  • Quick diameter adjustment by means of slider
  • Cover with integrated measurement ruler for wire comb diameter
  • Fixed margin depth
  • Adjustable paper stop
  • Large punching waste tray
  • Compact and space-saving
  • Extremely robust metal construction (15 kg)
Maximum:
Width

Width
300 mm

Punch up to

Punch up to
2.0 mm

Bind up to

Bind up to
28 mm

Output:
Max. punched sheets per hour

Max. punched sheets per hour
12.000

Max. bound products per hour

Max. bound products per hour
200

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm. (1) Dependent on machine type.

Cover with integrated measurement ruler for wire comb diameter

Binds up to 280 sheets. Quick diameter adjustment by means of slider.

EAN 4029126569327
Article n° 27210040
Capacité de perforation de feuilles / h 12,000
Largeur max. de perforation 300 mm
Épaisseur max. de perforation 2.0 mm
Perforation Manual
Matrices de perforation proposées Rechteckig 5.5 x 3.5 mm
Pas 2:1
Poinçons débrayables (QSA) No
Profondeur de marge réglable No
Épaisseur de reliure 1 - 28 mm
Ø de la baguette de reliure 6.9 - 32 mm
1/4" - 1 1/4"
Largeur max. de reliure 300 mm
Reliure Manual
Nb de cahiers réalisés / h 200
Nb de calendriers réalisés / h -
Dimensions de la machine (L x P x H) 190 x 333 x 456mm
Poids de la machine 15,4 kg

Technische Änderungen vorbehalten. 1 mm = 10 Blatt Papier, basierend auf einer Grammatur von 80 gr./m² Die Leistungsangaben basieren auf einer Papiergrammatur von 80 gr./m² und sind abhängig von Produkt, Arbeitsumfeld und Bediener. Für beste Stanzergebnisse empfehlen wir eine Stanzstärke von 1,5 - 2,0 mm.
